Wheels MFG

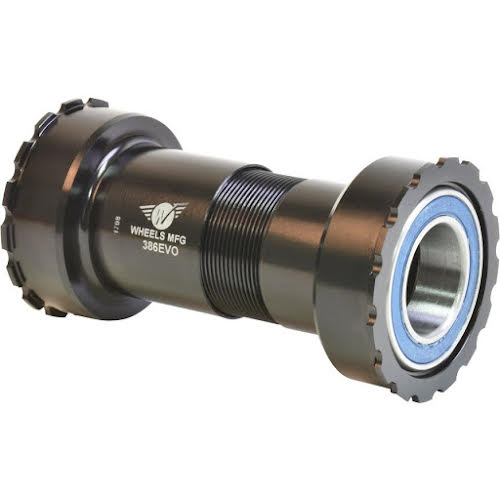

386EVO Bottom Bracket with Angular Contact for SRAM GXP

Wheels Manufacturing offers a solution for using a SRAM GXP crank in a frame that has a BB386EVO bottom bracket shell. Wheels Manufacturing BB386EVO bottom brackets feature machined aluminum cups and thread together for increased bearing life, simpler installation and less maintenance than a press in style bottom bracket. Angular contact bearings better handle side loads so that the bottom bracket remains smooth even when cranking up the steepest hill or fastest sprint to the finish line.

• For SRAM GXP 22/24mm cranks
• Angular contact bearing
• Machined aluminum thread together cups
• 145g

The Wheels Manufacturing 386EVO Bottom Bracket for SRAM GXP cranks is compatible with Quarq cranks that have spiders with an ID greater than 49.5mm. Cranks with an ID smaller than that will contact the bottom bracket cup. The following cranks are known not to work:

• Elsa
• Riken
• SRAM Red 22
• SRAM S975
• SRAM S2275
• CinQo Saturn
• Saturn2
