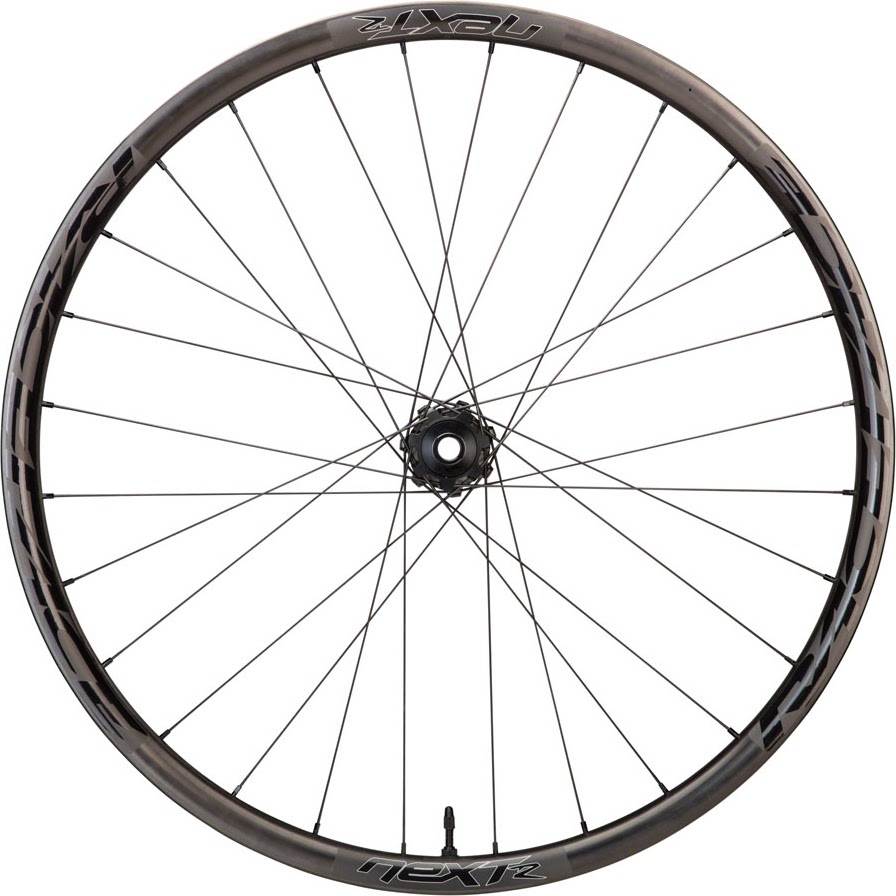

Race Face Next R Carbon Wheels were designed and built to be a wheel that meets the strength and tire volume needs of while being light enough for XC.
The Next R Carbon Wheels use a rim that's shape is based on the Arc 30 rim but with a 31mm internal width and a tubeless bead that grips the tire even at lower pressures. Next RCarbon Rims are completely constructed from unidirectional carbon fiber for reduced weight and increased strength over a typical alloy rim. Next R Carbon Rims are offset by 4.5mm to provide more even tension and adds stiffness to the Next R Wheels. Not only are the Next R Carbon Wheels tubeless-ready, Race Face takes it a step further and pre-tapes and installs the valves so that all you have to do is add sealant and go!
Next R Carbon Wheels use Race Face''s Vault hubs with straight pull spokes and larger oversized 6902 bearing with dual seals to help keep them clean and rolling fast. Tool-free end caps allow you to quickly service the bearings or switch between axle styles. Vault hubs have oversized spoke flanges that utilize straight pull spokes with a counterbore that prevents the spokes from binding.
4.5mm rim offset
Full UD carbon rim construction
Pre-installed tubeless tape and valves
Vault hubs with larger bearings and oversized asymmetrical hub flanges.
Straight pull spokes
Internal Rim Width
