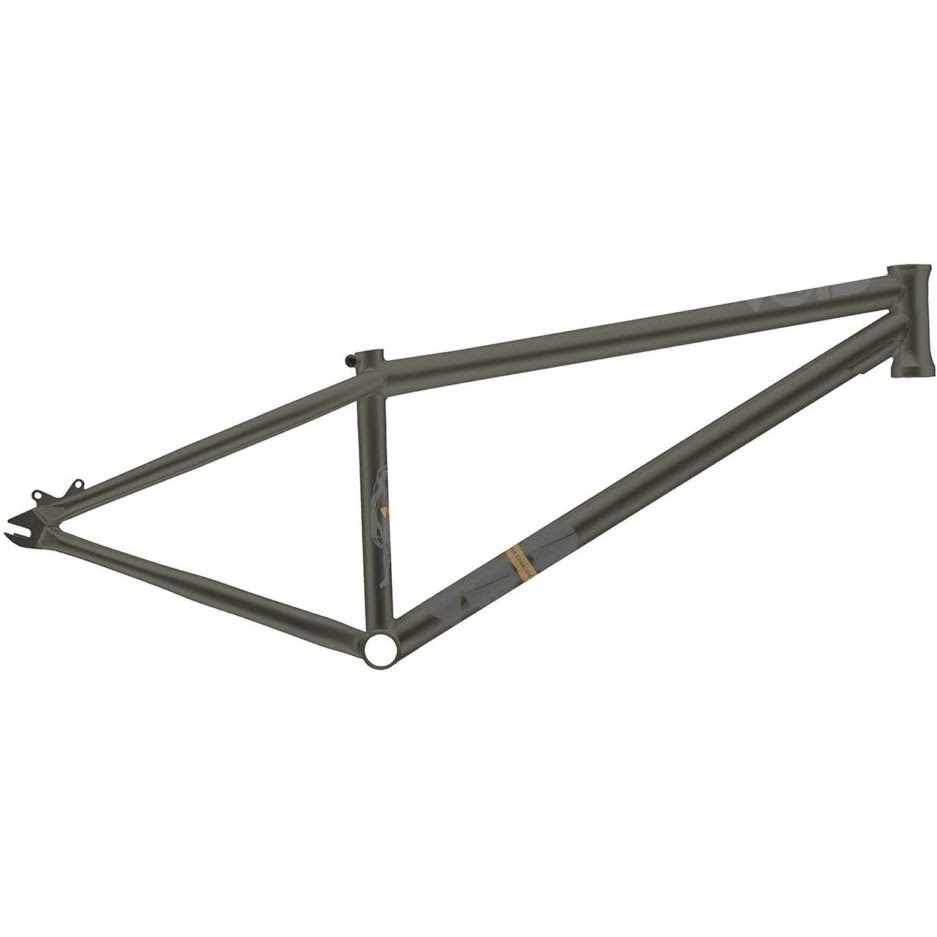

The Octane One Void is a steel dirt oriented frame designed to work with 26" wheels. Custom butted tubes, beefed up in the stress areas keep the weight low and strength high. An additionally The Void is a steel dirt oriented frame designed to work with 26" wheels.
Custom butted tubes, beefed up in the stress areas keep the weight low and strength high. An additionally reinforced top tube / seat tube junction is tough enough to survive abuse from tailwhips and 360's.
Custom butted 4130 CrMo frame for Dirt Jump, Street, Freeride use
Actual top tube length is 22.2", headtube is 4.5" long
Horizontal 10x135mm OL dropouts, integrated seat clamp
Adjustable caliper angle 51mm International Standard disc brake mount (185mm max)
Fits up to a 34t ring depending on crank/BB/chainline used
Recommended for use with 80-140mm travel forks (angles shown with a 140mm fork), 26" wheels, 2.35" tire max
Optional bolt-on derailleur hanger available separately (not included)
5.6 lbs / 2.55 kgs
Due to the box size, please allow a few extra days for the Octane One Void frame to ship.
Dirt Jump, Freeride
10mm x 135mm
