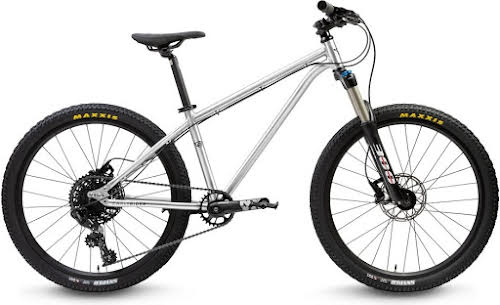

Our T24 is a bike geared towards the very capable young rider, arguably the hardest rider to support. Their competence on the trails warrants the best performing components, but their relative power means they also need the lightest; the result is an unavoidably high spec'd bike.
The lightweight aluminum frame runs 1 x 11, all SRAM NX drive train, including NX Powerspline cranks. A wide 11-42 cassette with a 28T direct mount chainring gives a massive range and super low gearing all of which help the young riders sail up those climbs that always come with the best downhills.
The 28H rear and 24H front, double walled rims stand up to all but the most cased jumps, and the Maxxis Sniper tires dial in the dirt when the wheels need to be routed to the berms. But speed is nothing without comfort and control which is provided in spades by the lightweight, air-sprung 100mm travel forks that flatten those ruts, SRAM Level hydraulic disc brakes for maximum on demand braking power, the SDG Fly Jr saddle and the full Ritchey cockpit featuring a super wide double butted, oversized riser bar.
STANDOVER HEIGHT: 63CM
FRAME: HAND BRUSHED AL6061, FORGED DROP OUTS
FORK: SPINNER 300 AIR 100MM TRAVEL, QR, DISC ONLY
STEERER TUBE: AL6061
CRANKS: SRAM NX POWERSPLINE 155MM
PEDALS: ER CNC''D AL6061, PLATFORM, STUDDED
BOTTOM BRACKET: SRAM POWERSPLINE 68/108
RIMS: 24 X 28H, DOUBLE WALLED AL6061
REAR HUB: AL6061 SD CASSETTE FREEHUB, CNC''D
FRONT HUB: CNC''D 6 BOLT DISC, AL6061, QR SKEWER
CHAIN: SRAM PC1110
CHAINRING: SRAM BLACK DIRECT MOUNT STEEL 28T
REAR CASSETTE: SRAM GX1130, 11-42T
SHIFTER: SRAM NX 11SP TRIGGER
DERAILLEUR: SRAM NX 11SP X-HORIZON
BRAKES: SRAM LEVEL HYDRAULIC DISC, 160MM
LEVERS: SRAM LEVEL
FRONT TIRE: 24*2.0 MAXXIS SNIPER
REAR TIRE: 24*2.0 MAXXIS SNIPER
HEADSET: 1 1/8" CARTRIDGE BEARING
STEM: RITCHEY OS FORGED AL6061, 60MM REACH
BARS: 640MM RITCHEY OS DOUBLE BUTTED AL6061
GRIPS: ER SOFT TOUCH MUSHROOM
SEAT POST: RITCHEY, 27.2MM, AL6061, ADJUSTABLE
SADDLE: SDG FLY JR, BLACK
SEAT CLAMP: RITCHEY QR, 31.8MM
