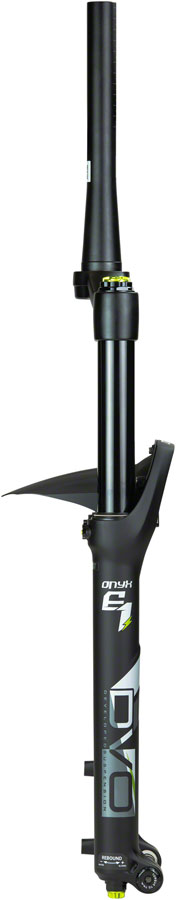

The Onyx SC-E1 series is based on the solid foundation of the D1 platform, but with an approach to accommodate the use of E-MTB?s and their luxury of ripping both up and down the trail. Due to the added weight and mileage from an E-MTB, the SC-E1 features increased bushing overlap within the casting; providing structural stability and longevity over a longer period of time. The fork utilizes the same D1 damper, helping to maintain a lighter compression tune and supple ride that keeps riders fresh until the battery runs out.
67% More Bushing Overlap compared to the SC-D1
Exclusive OTT (Off The Top) adjustment feature allows riders to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise
Over thirty clicks of High Speed Compression give precise control for support on big hits
Shim stack controlled rebound that is 100% dynamic; meaning, the rebound is controlled based on the speed at which oil flows through the system
Six clicks of low speed compression give quick access to firming up the fork for pedaling, opening for descending, and mid settings for everything in between
Axle to Crown
Post Mount 160
High Speed Compression Damping, Low Speed Compression Damping, Rebound Damping
Front Axle Type
15mm Thru x 110mm
S.H.I.S. Stem Clamp
Steerer Tube Length
